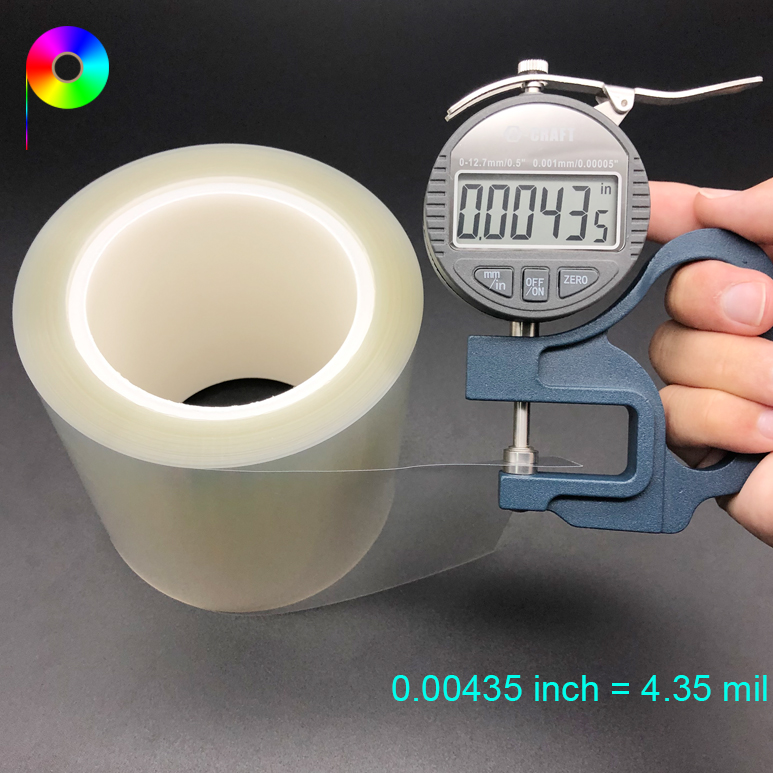

110 micron 4.35 mil Low Adhesion PU Protective Film for Optical Products Protection

110 micron 4.35 mil Low Adhesion PU Protective Film for Optical Products Protection

Prodct Details on 110 micron PET Protective Film

PU protective film is a high-end protective film that is mainly used for optical product protection.

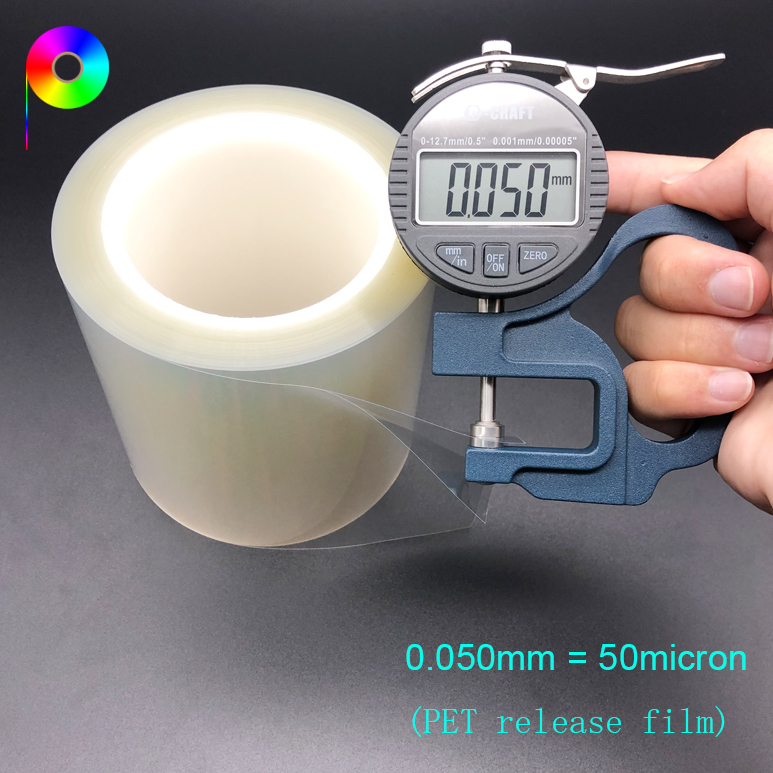

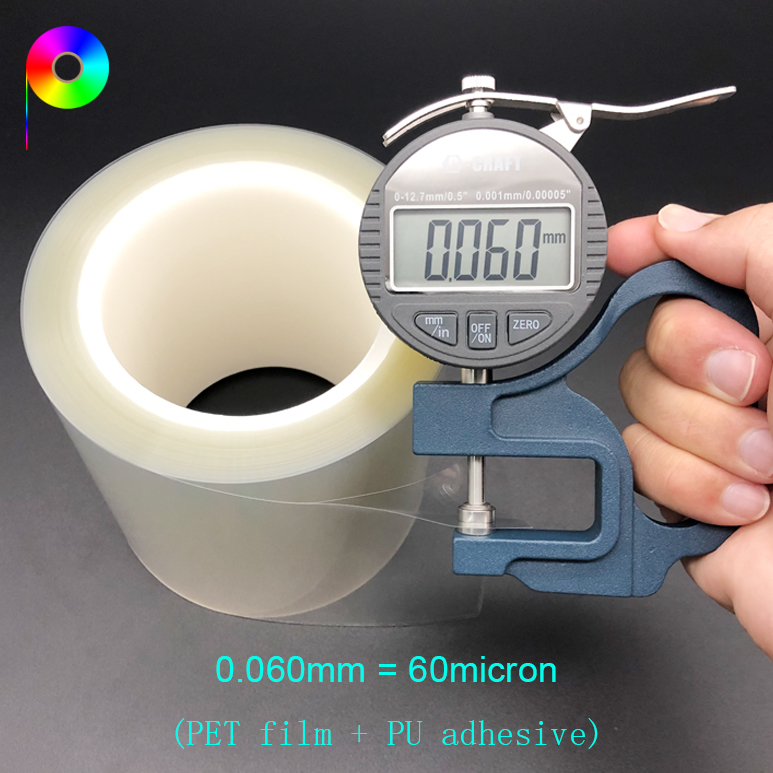

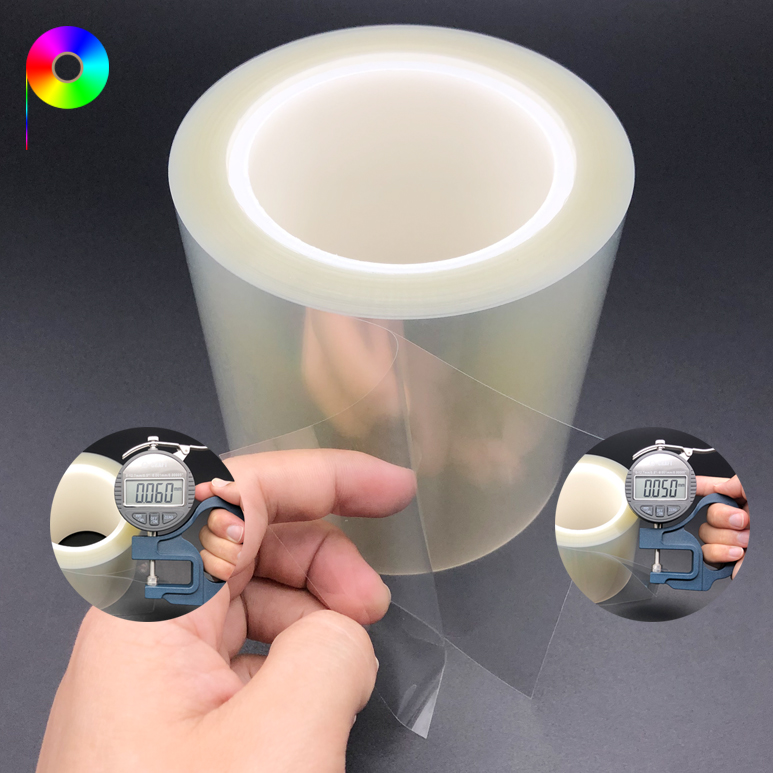

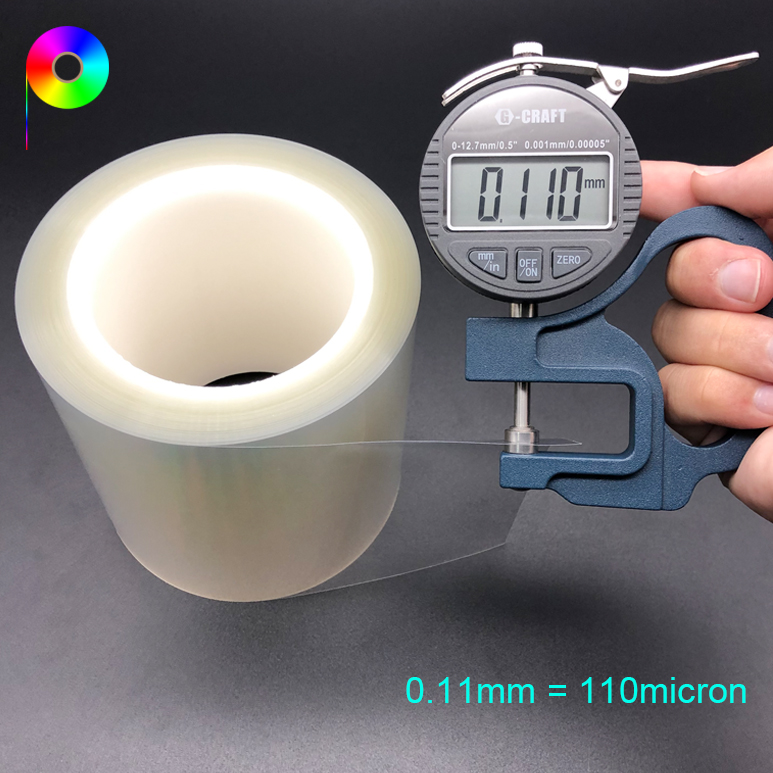

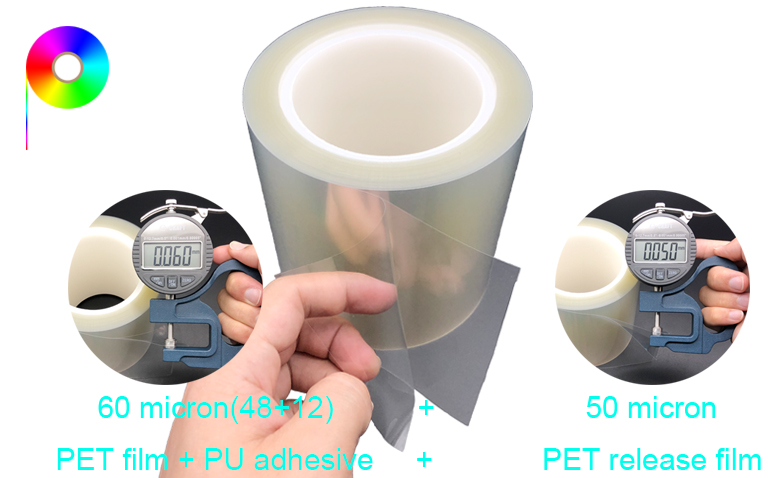

110 microns, a popular thickness for PU protective film, is consisted of 48-micron optical grade PET film, 12-micron PU adhesion, and 50-micron PET release film.

It is mainly used in panel surface protection of optical products such as a flat display(glass, acrylic, or PC material), CRT, touch screens, mobile phones, digital cameras, and PDA panels, which achieves the effect of protecting the panel during use.

Technical Date Specification of PU Protection Film 110 micron
Thickness:	60 + 50 micron	Width:	1040mm/customized width	Length:	200m/customized length
Appearance:	transparent	Light Transmittance:	≥ 95%	Heat Shrinkage:	≤ 2%
Haze	＜ 4%	Elongation:	≥ 80%	Shelf Life:	12 months
Temperature Resistance:		non adhesive residue after 72 hours of 60℃ bake oven
Adhesion(for reference):		1~3g/25mm

What Is Protective Film?

In terms of function, the protective film is to put a film on the physical objects we want to protect. It helps for reducing the loss of surface scratches encountered during the transportation, handling, storage, and even display of products in the circulation link from the factory to the market. According to the application scope, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

Where Is Protective Film Used?

Protective film has a wide application field. According to usage, protective films can be divided into digital product protective films, automotive protective films, household protective films, food preservation protective films, etc. According to market classification, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

According to market classification, protective films can be divided into traditional protective films(such as galvanized steel plate protective film, color steel plate protective film, glass plate or plastic sheet protective film), protective films for flat panel displays(flat panel display, TFT-LCD module, backlight module, glass substrate and various optical components such as polarizing plates and color filters), and protective films for high-tech electronics(dry film process, wafer grinding process).

How to Select a Suitable Protective Film?

With the development of technology, the protective film is mostly innovated upon demand's side, which brings out a situation that there are lots of protective film types.

PE protective film and PET protective film take up the most market share among the protective film. While demand differs from each project, such as applying material(glass, plastic, metal, etc), surface properties (such as glossy, frosted, coats, roughness, etc), subsequent processing technology(stamping, cutting, bending, punching, etc), other specific demand(use environment, storage, and transportation conditions, outdoor requirements, substrate color, printing demand or not). So a sample for testing after the discussion is the most popular method for selecting a suitable protective film. Welcome to contact PNP Film(Email: info@pnpfilm.com, Telephone/WhatsApp/WeChat: +8617306017582) for confirming the suitable protective film now.
