210micron 8.3mil Automatic Exhaust OCA Silicone Adhesion AB Film for Tempered Glass Protection

210micron 8.3mil Automatic Exhaust OCA Silicone Adhesion AB Film for Tempered Glass Protection

Product Details on 210 micron OCA Silicone Adhesion AB Film

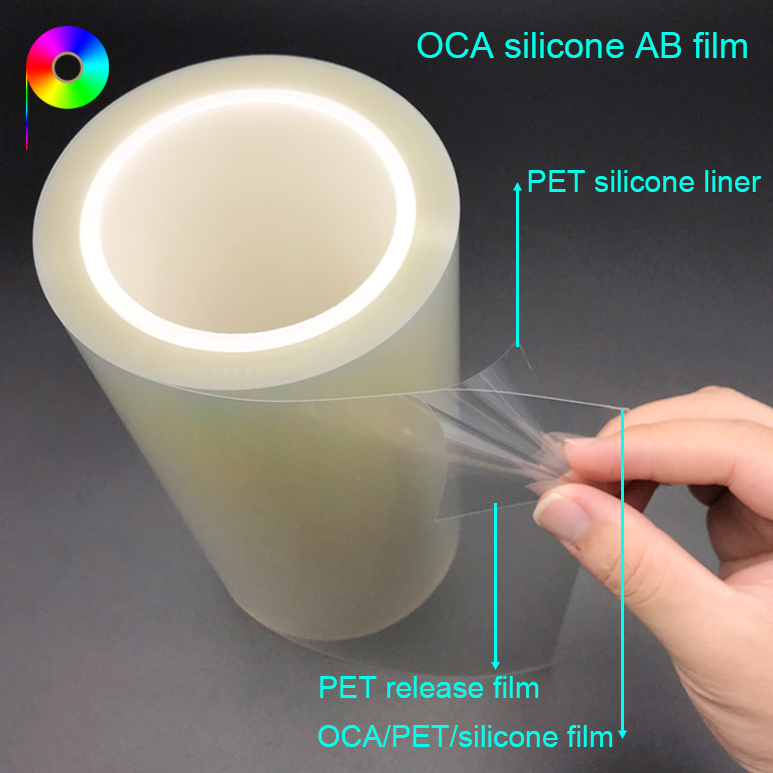

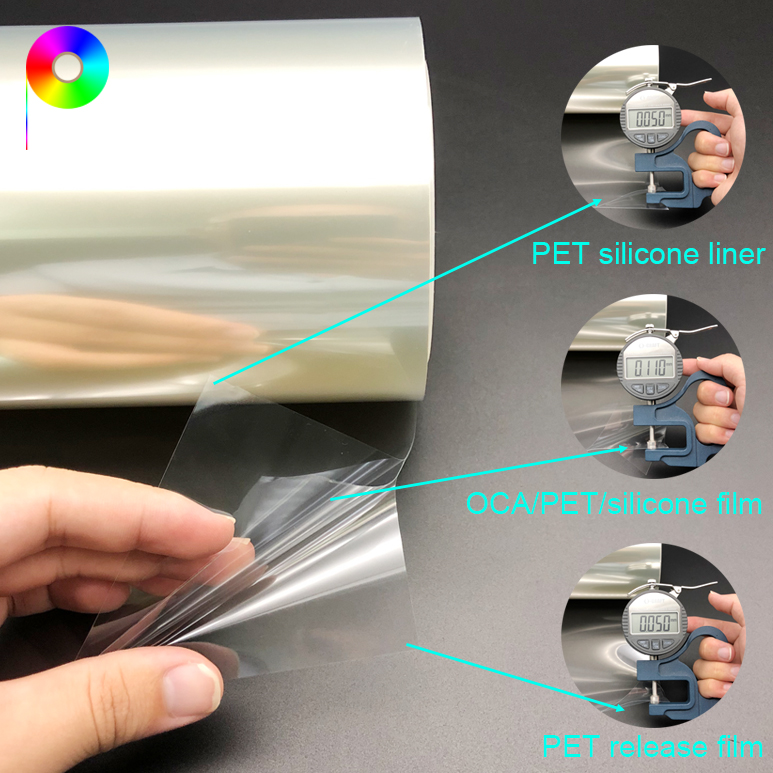

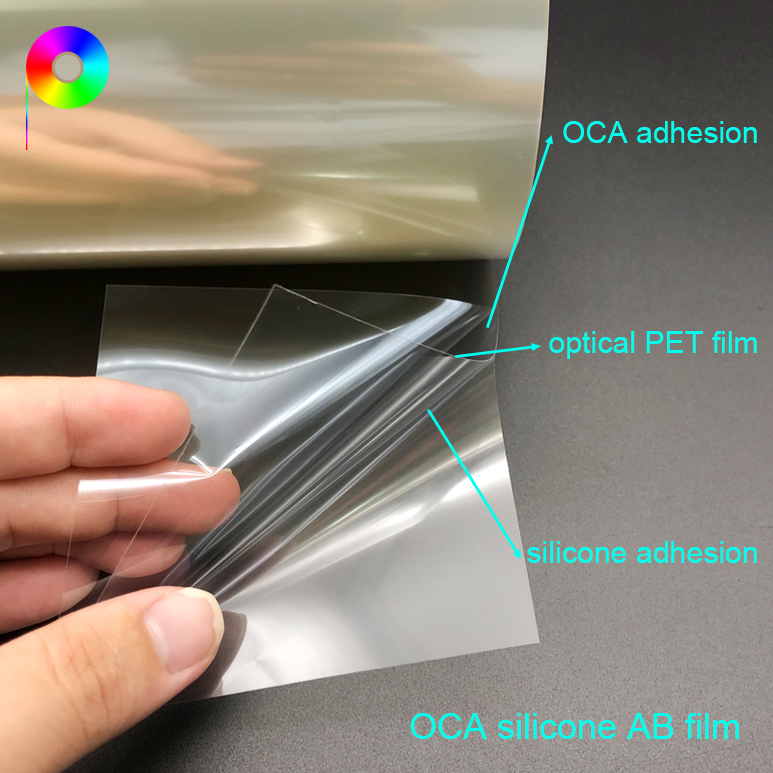

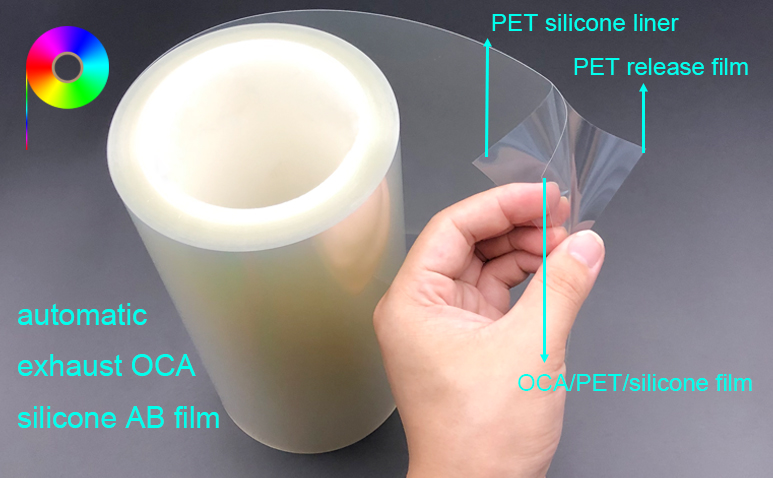

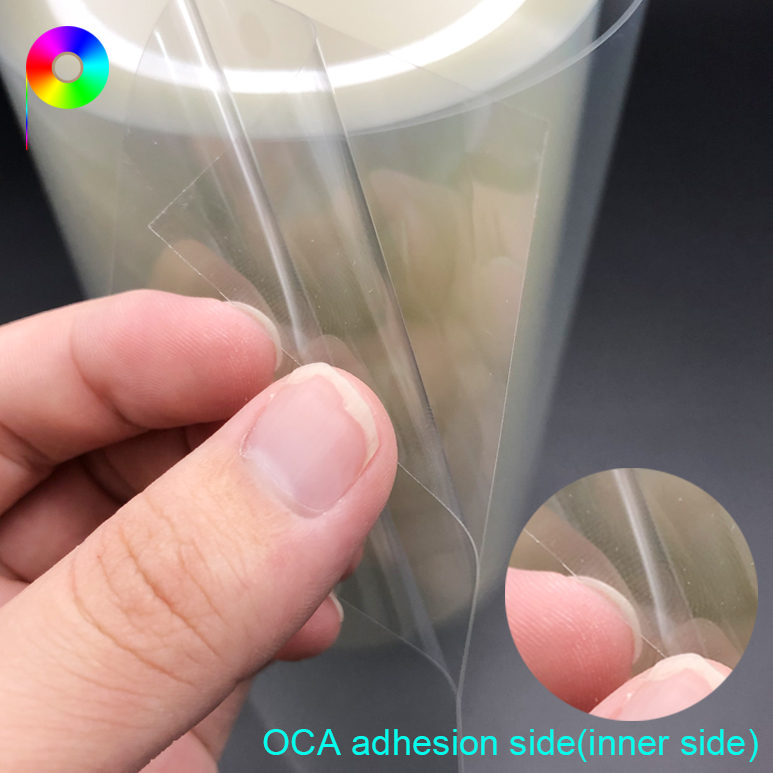

210micron(equal to 8.3 mil)  OCA silicone adhesion AB film takes 50micron optical PET film as the base film, its inner surface is coated with 50micron optical clear OCA adhesive, its outer surface is coated with 10micron silicone adhesive.  Outside the usage layer, there are 50micron PET silicone liner on the inner side and 50micron PET protective film(PET release film) on the outer side, the 2 outside films form the non-usage layer.

It is dedicated to tempered glass protection, the OCA adhesion is with high adhesion(about 1500 g/25mm) that support sticking to the tempered glass, and the silicone adhesion is with excellent automatic exhaust property, which is stuck to the screen such as mobile phone, laptop, etc.

As the PET film and the OCA film are both taking optical grade material, the high light transmittance(≥92%) and low haze(≤2%) offer an excellent original visual effect.

Technical Date Specification of OCA Silicone Adhesion AB Film 210micron
Thickness:	210 ± 5 micron	Width:	customization under 1020mm	Length:	100m
Appearance:	bluish	Light Transmittance:	≥ 92%	Haze:	≤ 2%
Adhesion:	1500±200 g/25mm for OCA adhesion side, 5±2 g/25mm for silicone adhesion side
Storage Conditions:	temperature 10~36℃, relative humidity 40%~70%, prevent direct light, good ventilation

What Is Protective Film?

In terms of function, the protective film is to put a film on the physical objects we want to protect. It helps for reducing the loss of surface scratches encountered during the transportation, handling, storage and even display of products in the circulation link from the factory to the market. According to the application scope, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

Where Is Protective Film Used?

Protective film has a wide application field. According to usage, protective films can be divided into digital product protective films, automotive protective films, household protective films, food preservation protective films, etc. According to market classification, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

According to market classification, protective films can be divided into traditional protective films(such as galvanized steel plate protective film, color steel plate protective film, glass plate or plastic sheet protective film), protective films for flat panel displays(flat panel display, TFT-LCD module, backlight module, glass substrate and various optical components such as polarizing plates and color filters), and protective films for high-tech electronics(dry film process, wafer grinding process).

How to Select a Suitable Protective Film?

With the development of technology, the protective film is mostly innovated upon demand's side, which brings out a situation that there are lots of protective film types.

PE, PVC, PET, and PU type protective film take up the most market share among the protective film. While demand differs from each project, such as applying material(glass, plastic, metal, etc), surface property(such as glossy, frosted, coats, roughness, etc), subsequent processing technology(stamping, cutting, bending, punching, etc), other specific demand(use environment, storage and transportation conditions, outdoor requirements, substrate color, printing demand or not). So a sample for testing after the discussion is the most popular method for selecting a suitable protective film. Welcome to contact PNP Film(Email: info@pnpfilm.com, Telephone/WhatsApp/WeChat: +8617306017582) for confirming the suitable protective film now.
