265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens
265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens
265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens
265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens
265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens
265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens

265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens

  • Price FOB Shenzhen,China US$ 61.76~66.73/SQM
  • Parameter protective film + screen + AR anti-reflection + 265 micron(thickness) + width + 200m(length)
  • Packing carton package → pallet
  • MOQ 1000 SQM(square meters)
  • Sample freely provided in 1 day
  • Shelf Life 3 years
Details

265micron Excellent Abrasion Resistance AR Anti-reflection Protective Film on PET/OCA for Screens

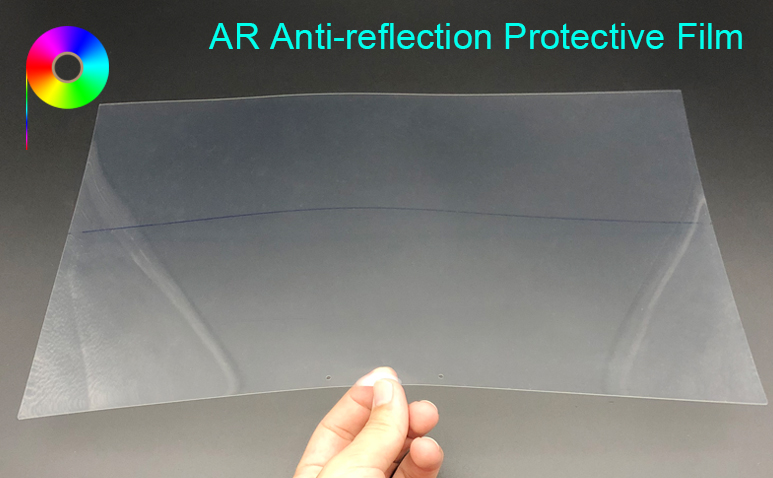

Product Details on 265 micron AR Anti-reflection Protective Film

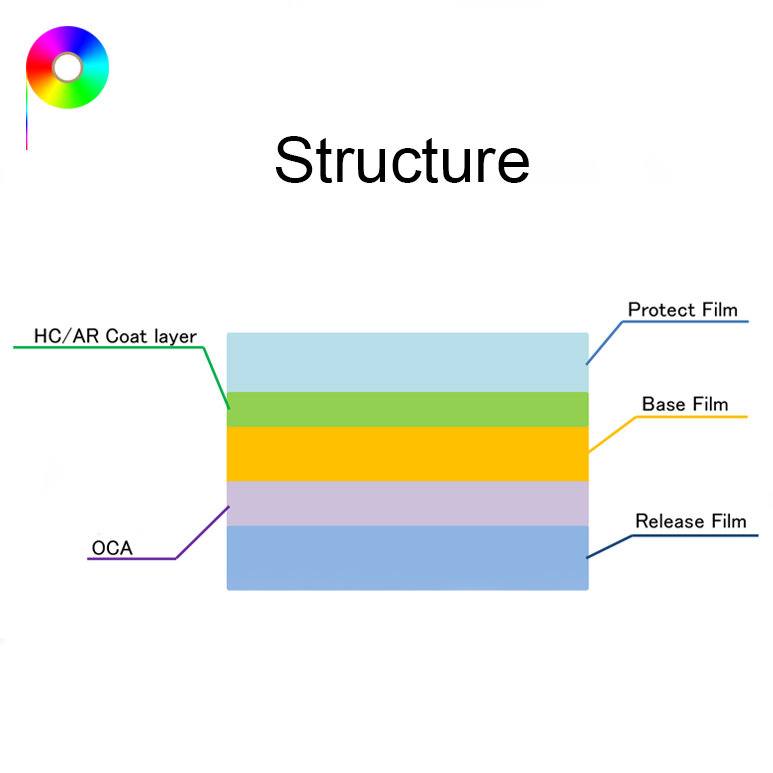

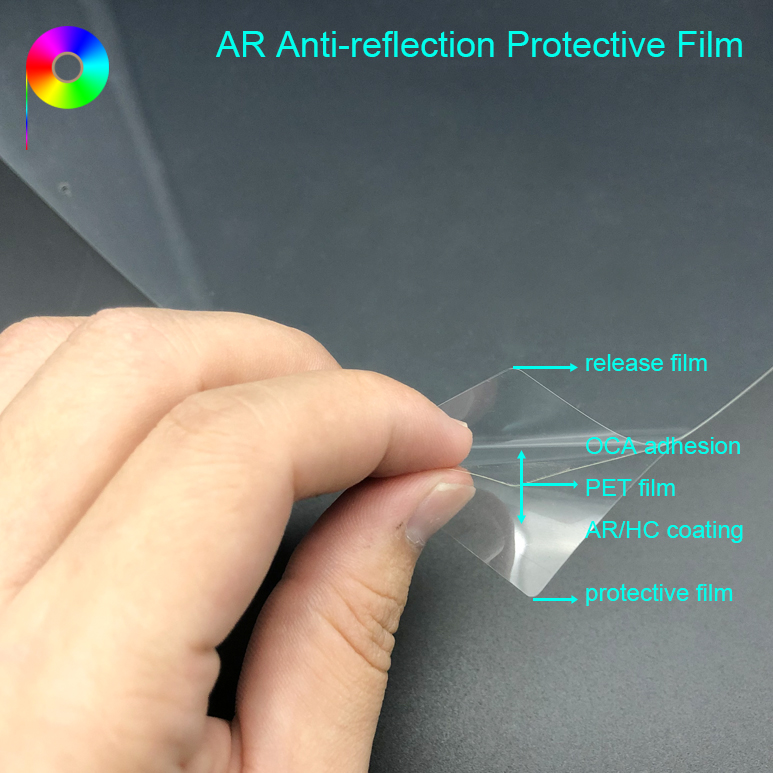

265micron(equal to 10.45 mil) AR anti-reflection protective film takes 75micron optical PET film as the base film, its inner surface is coated with 20micron optical clear OCA adhesive, its outer surface is coated with 10micron anti-reflection and hard coating material(means the total thickness of the usage layer is 105micron). Outside the usage layer, there is 75micron PET release film on the inner side and 85micron PET protective film(PET film with adhesive) on the outer side, the 2 outside films form the non-usage layer, which offers protection for the usage layer.

It is a high-end protective film possessing the excellent property of anti-reflection, anti-scratch, impact resistance in one film. And there is without leaving a residue when removing the protective film.

The AR protective film is mainly used on screens in order to prevent the user from being unable to see whats on the screen due to internal or external sunlight.


Technical Date Specification of AR Anti-reflection Protective Film 265micron

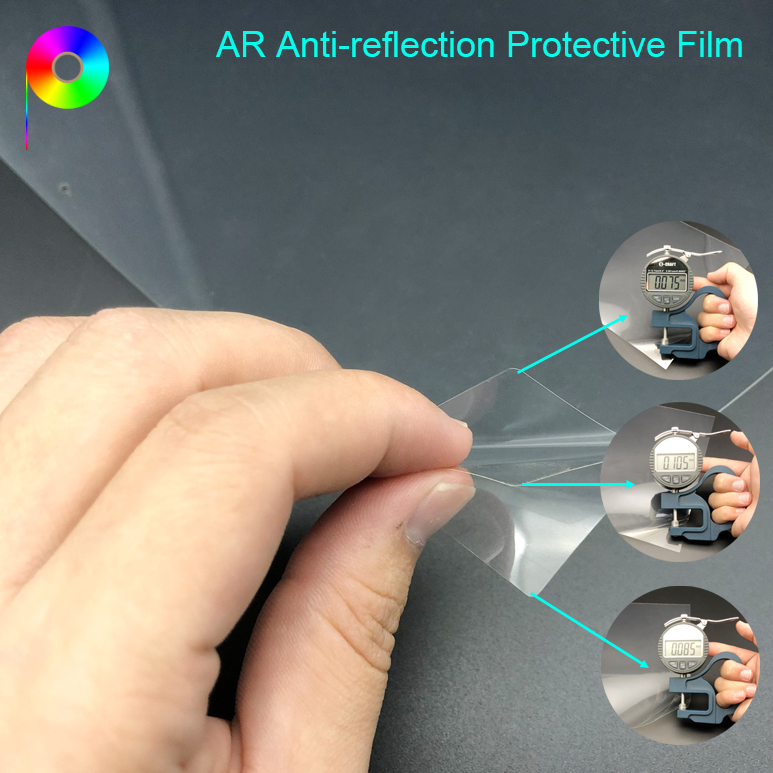

Thickness: 265 ± 5 micron Length: 200m Width: customized under 1260mm
Reflectance Y: 1.2% Light Transmittance: 95±1 %
Haze: ≤ 1.0%
Hardness: 2H Water Contact Angle: 110±5 ° Abrasion Resistance: ok with 200g loading weight
Adhesion: 400 g/25mm for OCA adhesion side, and 100 g/25mm for protective film side
Storage Conditions: temperature 10~36℃, relative humidity 40%~70%, prevent direct light, good ventilation

What Is Protective Film?

In terms of function, the protective film is to put a film on the physical objects we want to protect. It helps for reducing the loss of surface scratches encountered during the transportation, handling, storage and even display of products in the circulation link from the factory to the market. According to the application scope, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.


Where Is Protective Film Used?

Protective film has a wide application field. According to usage, protective films can be divided into digital product protective films, automotive protective films, household protective films, food preservation protective films, etc. According to market classification, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

According to market classification, protective films can be divided into traditional protective films(such as galvanized steel plate protective film, color steel plate protective film, glass plate or plastic sheet protective film), protective films for flat panel displays(flat panel display, TFT-LCD module, backlight module, glass substrate and various optical components such as polarizing plates and color filters), and protective films for high-tech electronics(dry film process, wafer grinding process).


How to Select a Suitable Protective Film?

With the development of technology, the protective film is mostly innovated upon demand's side, which brings out a situation that there are lots of protective film types.

PE, PVC, PET, and PU type protective film take up the most market share among the protective film. While demand differs from each project, such as applying material(glass, plastic, metal, etc), surface property(such as glossy, frosted, coats, roughness, etc), subsequent processing technology(stamping, cutting, bending, punching, etc), other specific demand(use environment, storage and transportation conditions, outdoor requirements, substrate color, printing demand or not). So a sample for testing after the discussion is the most popular method for selecting a suitable protective film. Welcome to contact PNP Film(Email: info@pnpfilm.com, Telephone/WhatsApp/WeChat: +8617306017582) for confirming the suitable protective film now.
