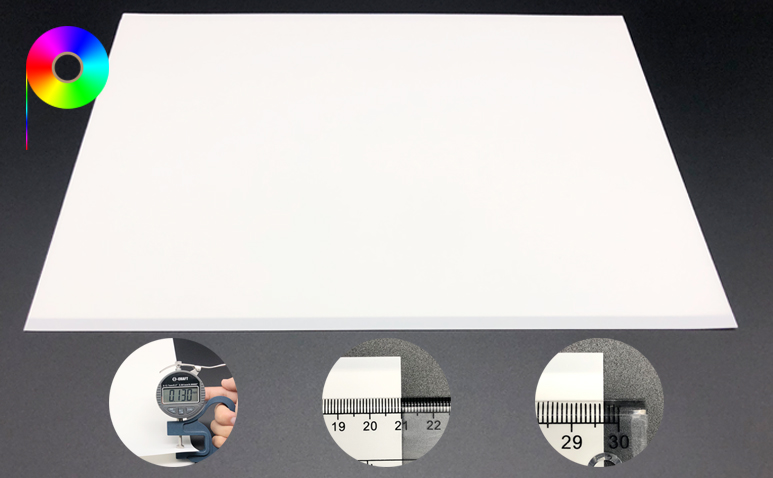

Double Sides Printable Laser Grade 130μm A4 Size Porcelain White PET Medical Printing Film

130micron laser grade medical film takes 100micron PET film as the base film and then coated with special agent for laser printer printing.

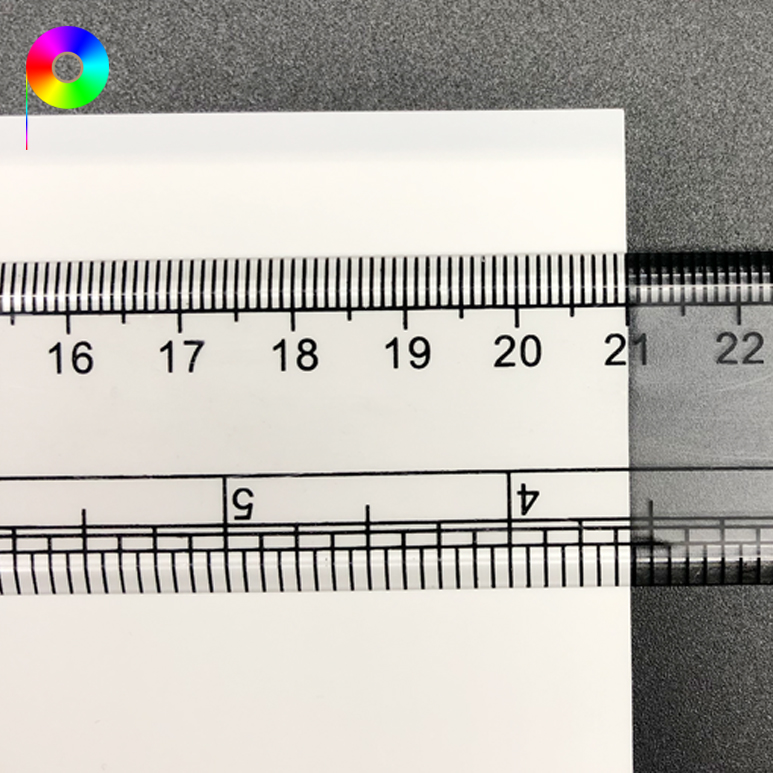

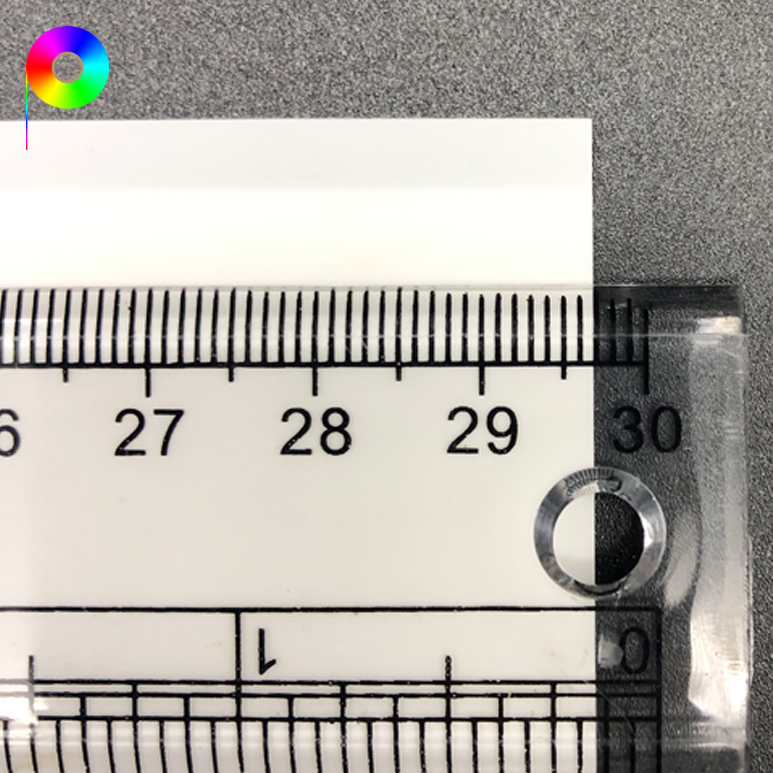

It is in porcelain white appearance and both sides printable, and A4 size(210mm*297mm) enjoys the most popularity in the world, other sizes such as A3(297mm*420mm), B5(182mm*257mm), 16K(195mm*271mm), or customized size is also available.

Technical Specification of 130μm A4 Porcelain White Laser Grade PET Medical Printing Film

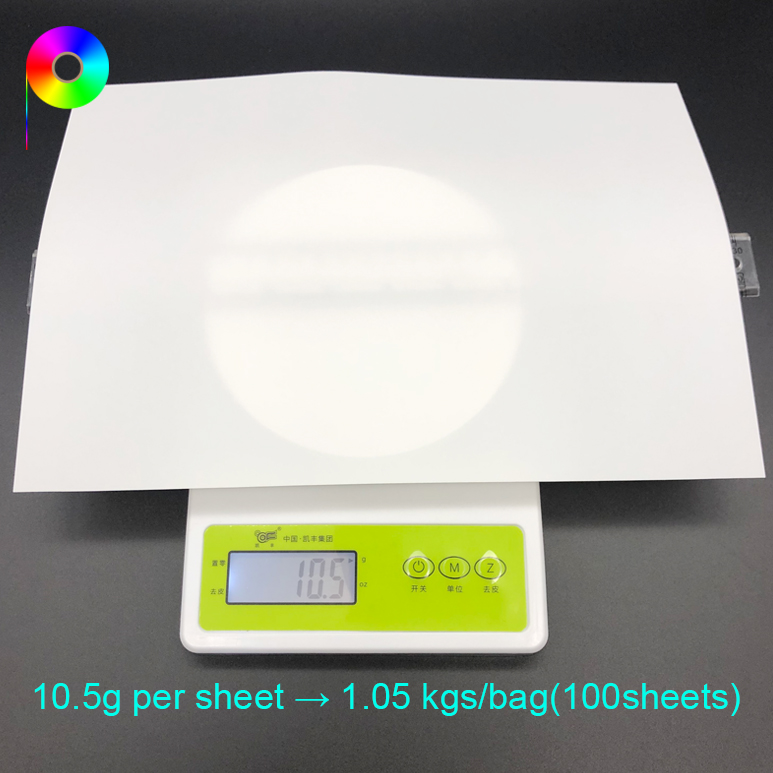

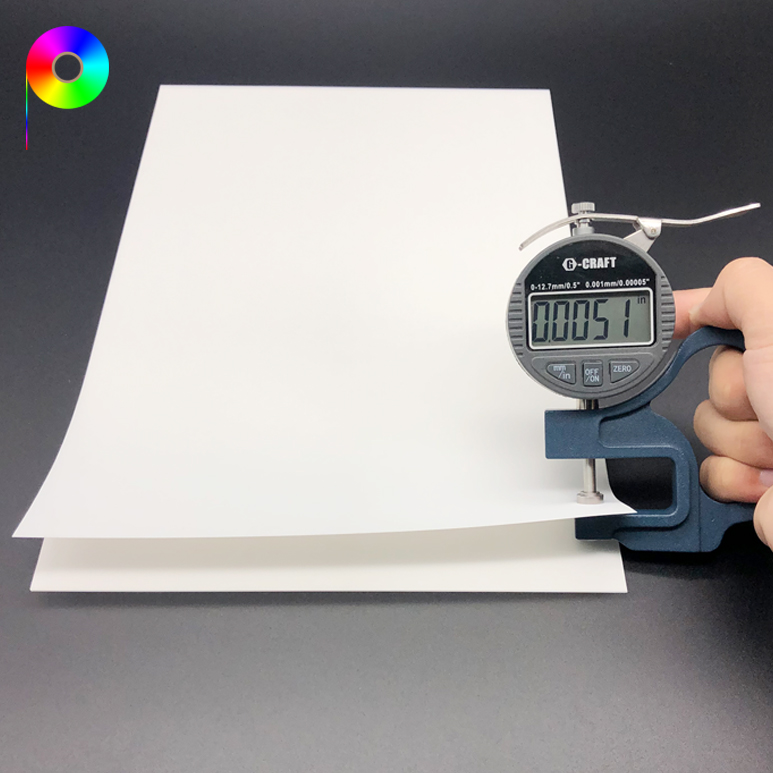

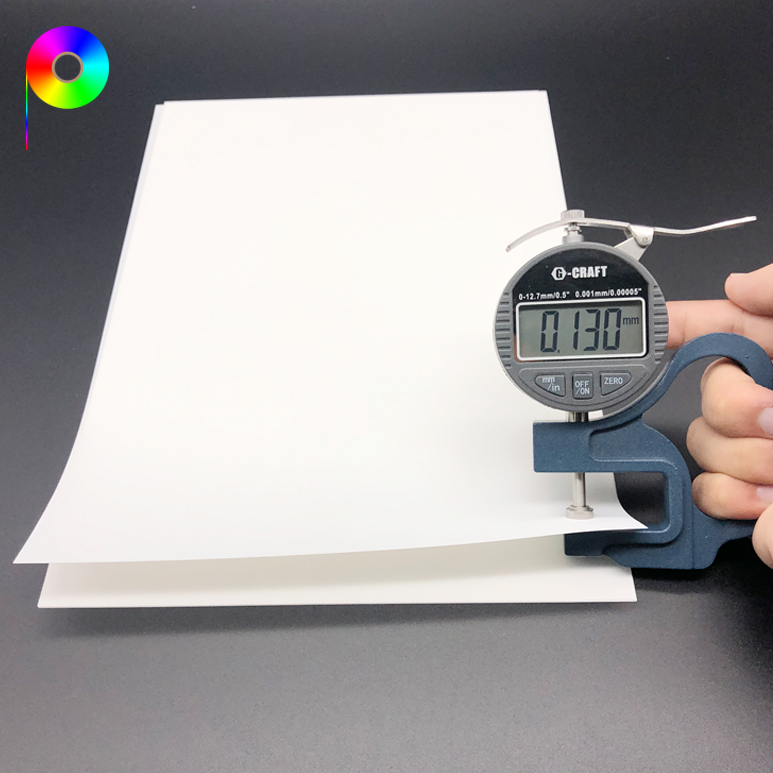

Thickness	130μm(100μm base film)	Size	A4(210mm*297mm)	Package	100 sheets/foil bag (OPP bag inside)
Shelf Life	18 months	DPI	1440	Printing Proformance	both sides printable
packing	10 bags load into a carton, tens of cartons load into a pallet, pallets load into container

Laser grade medical printing film is available in porcelain white base and blue base two types. The thickness for white base laser printing medical film is 130micron and 160micron, and the thickness for blue base medical printing film for laser printer is 182micron.

What Is PET Medical Film?

PET medical film is a medical-grade PET film which is used for image output, usually in hospital printing application. The majority of PET medical film is made from clear polyester and is enhanced with a special coating on the PET film surface. The coating material supports the PET medical film printable for laser printer, inkjet printer, thermal printer.

According to its appearance, PET medical film can be classified into two types: one is in a blue base, and the other is in a white base.

Different grades of medical film, which is with a different coating, make the final medical film looks a bit different, even though in a same base of blue or white. The final product on laser grade blue base film looks more transparent than on the inkjet grade blue base film(or to say the inkjet printer grade blue medical film is more white than the laser printer grade blue medical film). And the final product on white base laser printing medical film possesses a matte white effect(and the same on both sides), while the final product on white base inkjet printing medical film is with a glossy white effect for the printing side(while a high glossy effect on the PET base film side).

Where Is PET Medical Film Used?

PET medical film is mainly used for medical image output in hospital printing. Medical film is the media for image output such as B-ultrasound, color ultrasound, gastroscope, enterscope, panoramic dental, X-ray, CT(computed tomography), CR(computed radiography), DR(digital radiography), MRI(magnetic resonance imaging), etc. With the help of medical film, radiologist and doctor can get a patient's situation by the image and have an excellent treatment accordingly.

How to Choose a PET Medical Film?

Printer type and final demand are the first two things when selecting a medical film. For example, an inkjet printer that is used for X-ray output is supposed to adopt inkjet grade blue base medical film.

Thickness and size are the second step for confirming the suitable medical film parameters upon your specific demand. The base film is for laser grade medical printing film is 100micron(white base), 125micron(white base), and 175micron(blue base). And the base film for inkjet grade medical printing film is 125micron(white base), 150micron(white base), and 175micron(blue base). A4(210mm*297mm), A3(297mm*420mm), B5(182mm*257mm), 16K(195mm*271mm) are the popular size among the world, customized size and custom roll format is also available.

For more information about medical films, such as medical film types, FAQs on medical film, medical film packing, product guarantee on medical film, please click  HERE.
