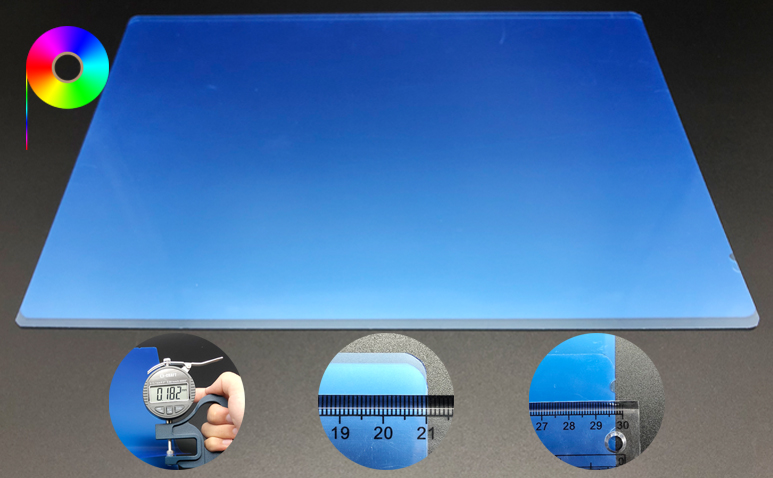

Single Side Printable A4 210mm*297mm 182micron Blue Base PET Medical Film for Laser Printer

Blue base PET medical film is a single side printable medical printing film used for image output in the field of hospital.

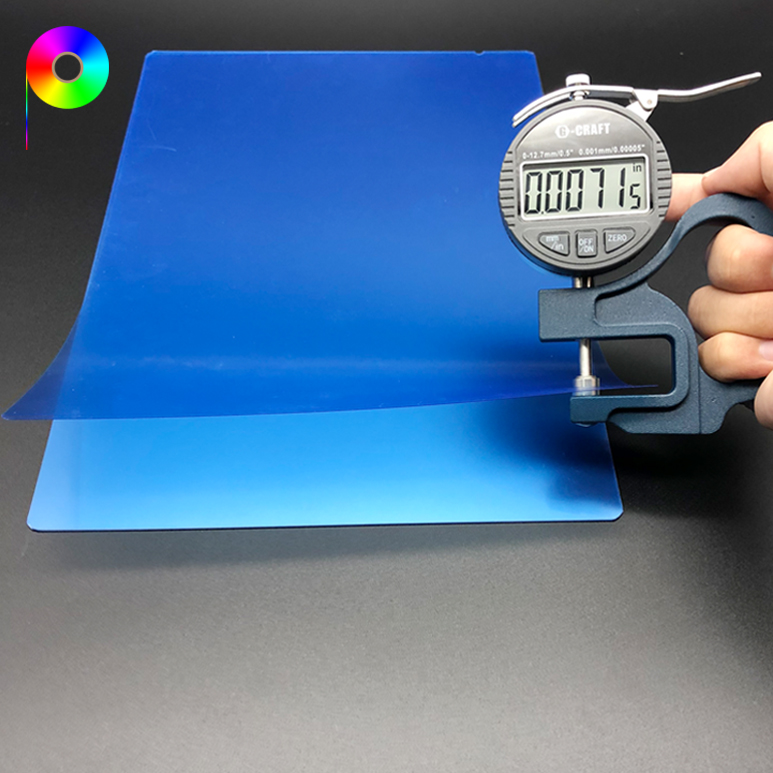

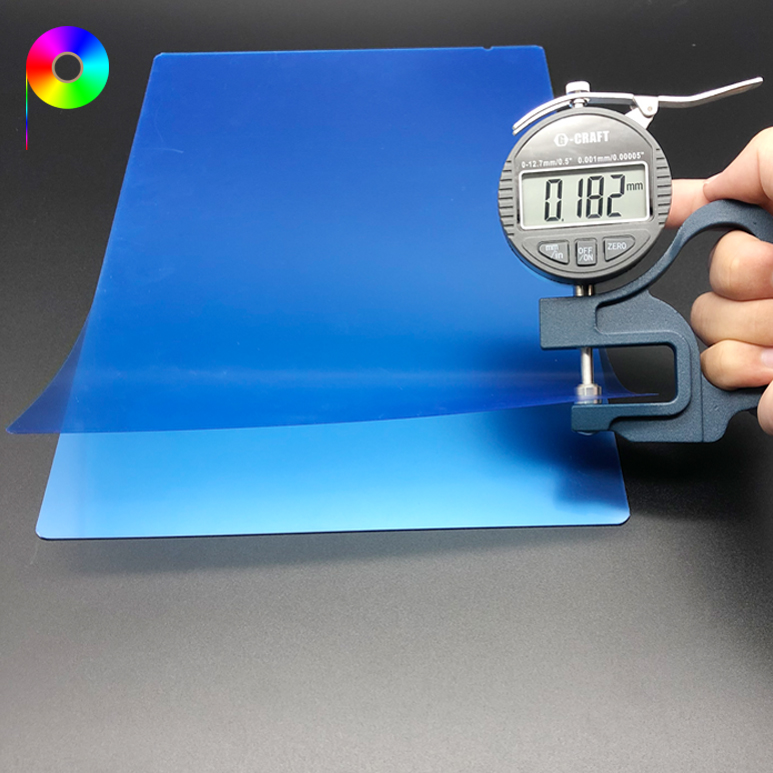

175micron is the standard base film thickness for a blue base medical film, and the total thickness would reach 182micron after coating with laser printer coatings.

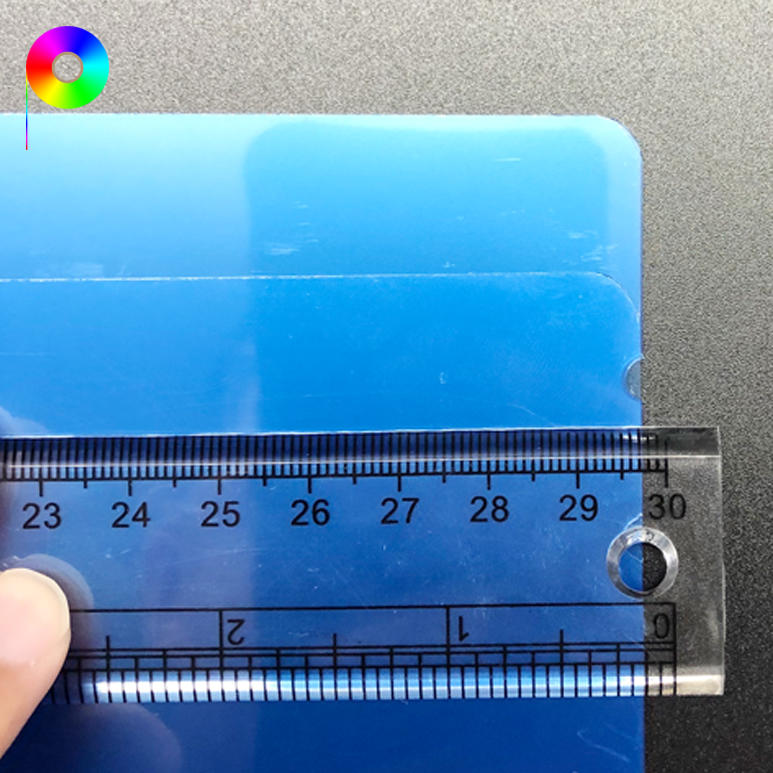

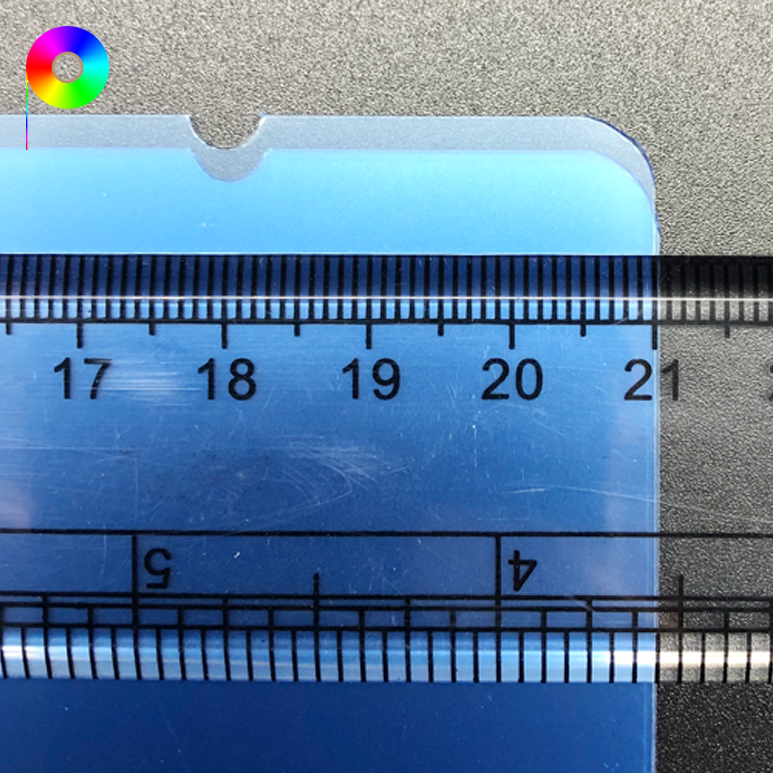

A4 size(210mm*297mm) is the most popular size for a medical film, and other sizes such as A3(297mm*420mm), B5(182mm*257mm), 16K(195mm*271mm), or customized size is also available.

Technical Specification on 182micron A4 Blue Base Medical Film for Laser Printer
Thickness	182micron(175micron base film)	Size	A4(210mm*297mm)	Package	100 sheets/foil bag(OPP bag inside)
Shelf Life	18 months	DPI	1440	Printing Property	single side printable
Packing	10 bags loaded into a carton, tens of cartons loaded on a pallet, pallets loaded into a container

Laser grade medical printing film is available in porcelain white base and blue base two types. The thickness for white base laser printing medical film is 130micron and 160micron, and the thickness for blue base medical printing film for laser printer is 182micron.

What Is PET Medical Film?

PET medical film is a medical-grade PET film which is used for image output, usually in hospital printing application. The majority of PET medical film is made from clear polyester and is enhanced with a special coating on the PET film surface. The coating material supports the PET medical film printable for laser printer, inkjet printer, thermal printer.According to its appearance, PET medical film can be classified into two types: one is in a blue base, and the other is in a white base.

According to its appearance, PET medical film can be classified into two types: one is in a blue base, and the other is in a white base.

Different grades of medical film, which is with a different coating, make the final medical film looks a bit different, even though in a same base of blue or white. The final product on laser grade blue base film looks more transparent than on the inkjet grade blue base film(or to say the inkjet printer grade blue medical film is more white than the laser printer grade blue medical film). And the final product on white base laser printing medical film possesses a matte white effect(and the same on both sides), while the final product on white base inkjet printing medical film is with a glossy white effect for the printing side(while a high glossy effect on the PET base film side).

Where Is PET Medical Film Used?

PET medical film is mainly used for medical image output in hospital printing. Medical film is the media for image output such as B-ultrasound, color ultrasound, gastroscope, enterscope, panoramic dental, X-ray, CT(computed tomography), CR(computed radiography), DR(digital radiography), MRI(magnetic resonance imaging), etc. With the help of medical film, radiologist and doctor can get a patient's situation by the image and have an excellent treatment accordingly.

How to Choose a PET Medical Film?

Printer type and final demand are the first two things when selecting a medical film. For example, an inkjet printer that is used for X-ray output is supposed to adopt inkjet grade blue base medical film.

Thickness and size are the second step for confirming the suitable medical film parameters upon your specific demand. The base film is for laser grade medical printing film is 100micron(white base), 125micron(white base), and 175micron(blue base). And the base film for inkjet grade medical printing film is 125micron(white base), 150micron(white base), and 175micron(blue base). A4(210mm*297mm), A3(297mm*420mm), B5(182mm*257mm), 16K(195mm*271mm) are the popular size among the world, customized size and custom roll format is also available.
