48 micron 1.9 mil PET Plastic Protective Film for Die-cutting Processing Protection

48 micron 1.9 mil PET Plastic Protective Film for Die-cutting Processing Protection

Product Details on 48 micron PET Protective Film

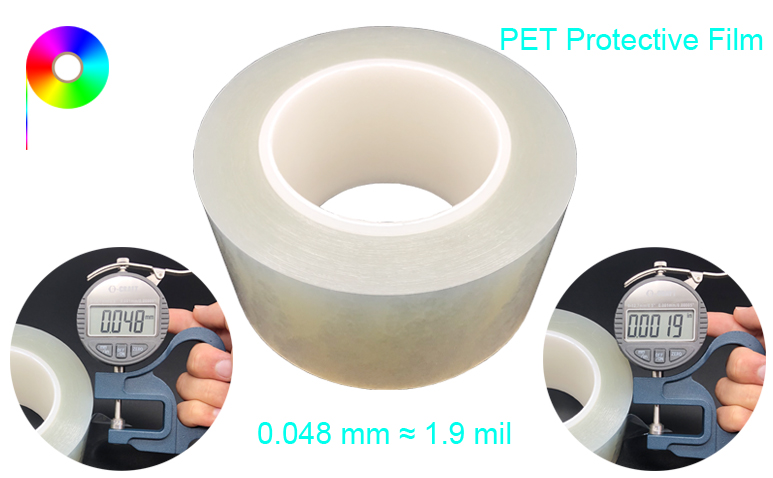

48 micron(equal to 1.9 mil) is a popular thickness for PET protective film. It takes 38 microns of transparent PET polyester film as the base film and then coating with about 10-micron acrylic adhesive on the inner side.

PET plastic protective film has features such as excellent light transmittance, great mechanical properties, and stable dimension. With a low adhesion, it is easy to tear off and leaves no residual glue after tearing, which makes it an ideal protective film for die-cutting processing protection, such as the  CNC processing process of electronic product shells, hot-pressing processing process of the aluminum battery, etc.

Technical Date Specification of PET Protection Film 48 micron
Thickness:	48±2 micron	Width:	custom	Length:	200m/customized length
Appearance:	transparent	Light Transmittance:	≥ 90%	Heat Shrinkage:	≤ 2%
Haze	＜ 8%	Tensile Strength:	≥ 170 MPa	Shelf Life:	12 months
Temperature Resistance:		non adhesive residue on #304 stainless steel after 1 hour of 60℃ bake oven(65% Relative Humidity)
Adhesion(for reference):		5~10g/25mm

What Is Protective Film?

In terms of function, the protective film is to put a film on the physical objects we want to protect. It helps for reducing the loss of surface scratches encountered during the transportation, handling, storage and even display of products in the circulation link from the factory to the market. According to the application scope, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

Where Is Protective Film Used?

Protective film has a wide application field. According to usage, protective films can be divided into digital product protective films, automotive protective films, household protective films, food preservation protective films, etc. According to market classification, the protective film is mainly used on the surface of metal products, coated metal products, plastic products, automotive products, electronic products, sign products, and other products.

According to market classification, protective films can be divided into traditional protective films(such as galvanized steel plate protective film, color steel plate protective film, glass plate or plastic sheet protective film), protective films for flat panel displays(flat panel display, TFT-LCD module, backlight module, glass substrate and various optical components such as polarizing plates and color filters), and protective films for high-tech electronics(dry film process, wafer grinding process).

How to Select a Suitable Protective Film?

With the development of technology, the protective film is mostly innovated upon demand's side, which brings out a situation that there are lots of protective film types.

PE protective film and PET protective film take up the most market share among the protective film. While demand differs from each project, such as applying material(glass, plastic, metal, etc), surface properties (such as glossy, frosted, coats, roughness, etc), subsequent processing technology(stamping, cutting, bending, punching, etc), other specific demand(use environment, storage, and transportation conditions, outdoor requirements, substrate color, printing demand or not). So a sample for testing after the discussion is the most popular method for selecting a suitable protective film. Welcome to contact PNP Film(Email: info@pnpfilm.com, Telephone/WhatsApp/WeChat: +8617306017582) for confirming the suitable protective film now.
